Designed for Airflow

Every curve of SOLIS is engineered for airflow performance. Optimized blade geometry reduces resistance and turbulence, creating a smoother, more even breeze and stable air circulation throughout the space.
Designed for Airflow

A new lightweight metal compact housing, its smooth, rounded form creates a lighter visual presence, accentuating the depth and refinement of the gunmetal finish.

The ABS blade is formed through precision injection moulding, allowing the form and subtle twist to be accurately controlled for a slim profile.

DETAIL DESIGN

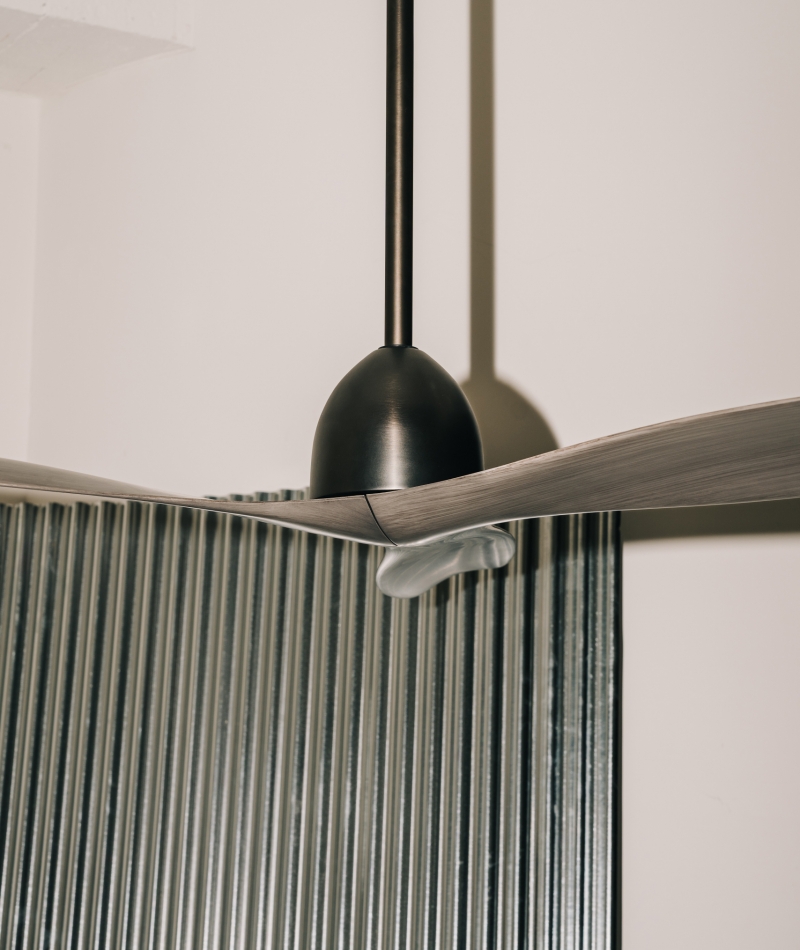

Compact Modern Housing

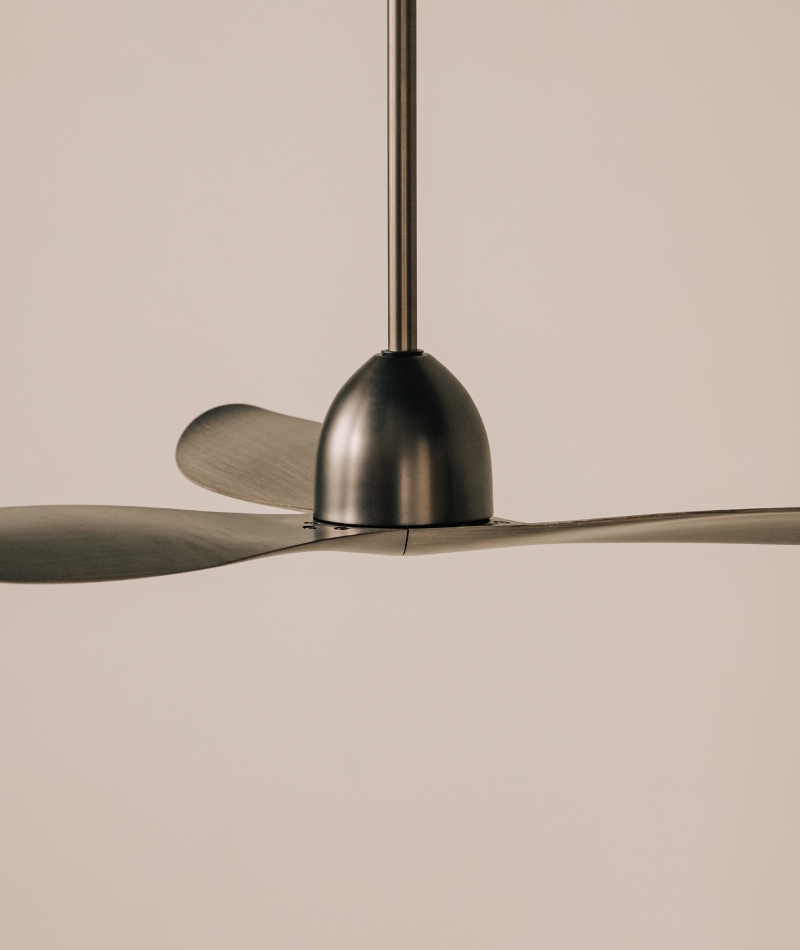

A minimized core and refined canopy give the SOLIS downrod configuration a more concentrated visual center. The blades extend outward with a lighter presence, creating a clear vertical proportion that blends naturally into high-ceiling spaces.
DETAIL DESIGN

Optimized Blade Profile

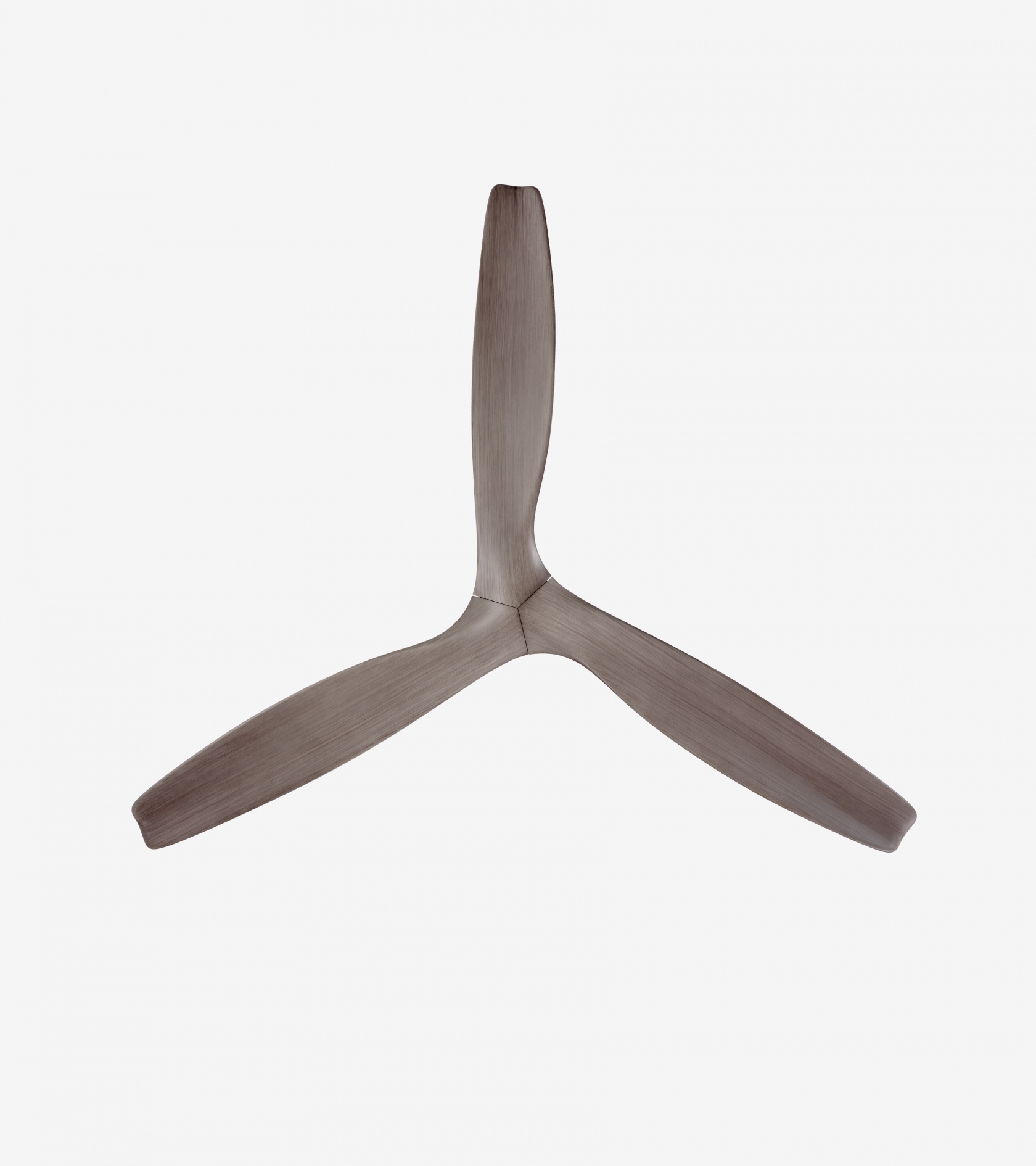

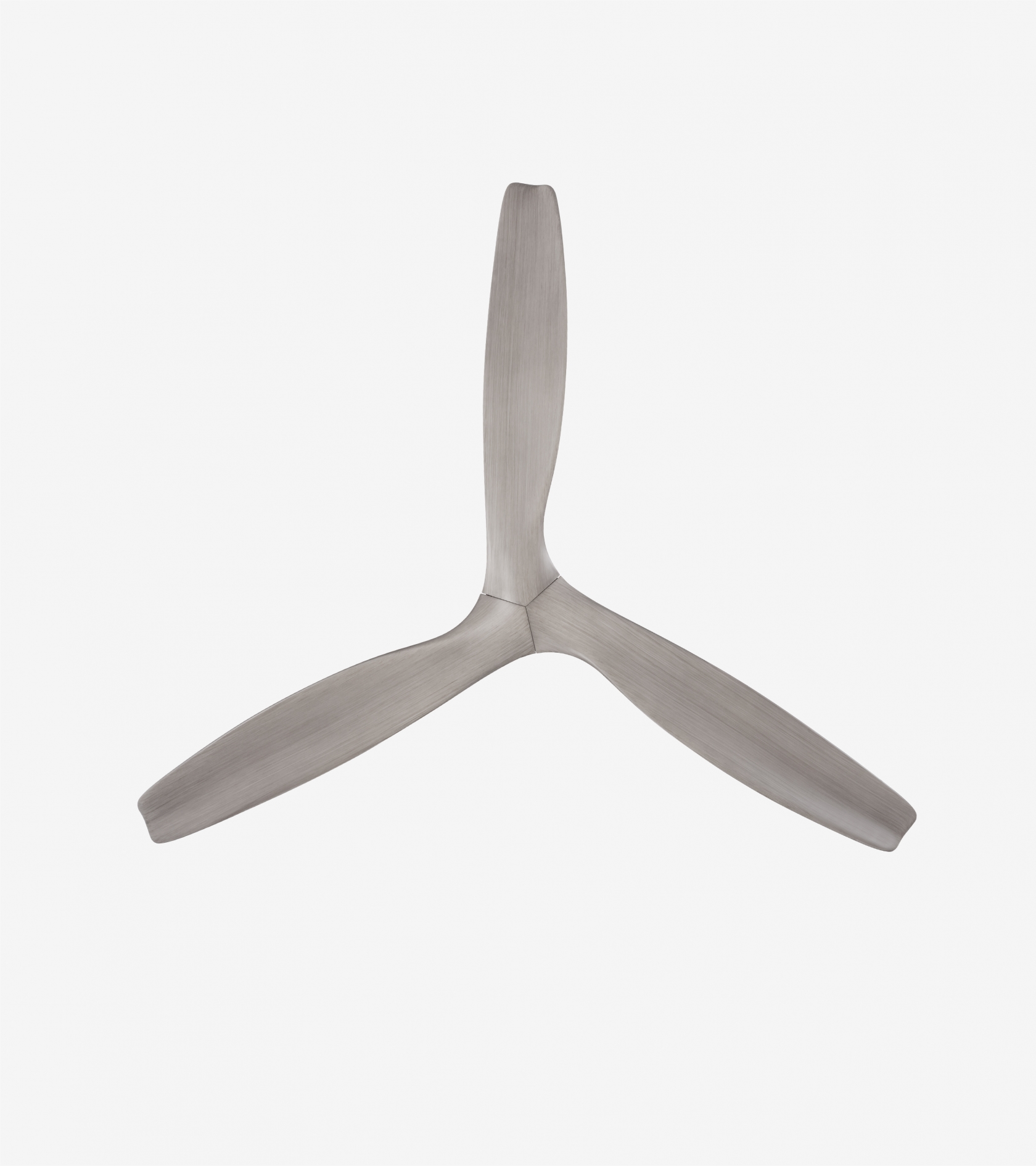

Inspired by nature’s streamlined forms, the SOLIS blade uses a slender, subtly twisted profile to guide airflow more efficiently. An upturned blade tip reduces drag and turbulence, creating a smoother, more even, and comfortable breeze.
DETAIL DESIGN

Comfort in Motion

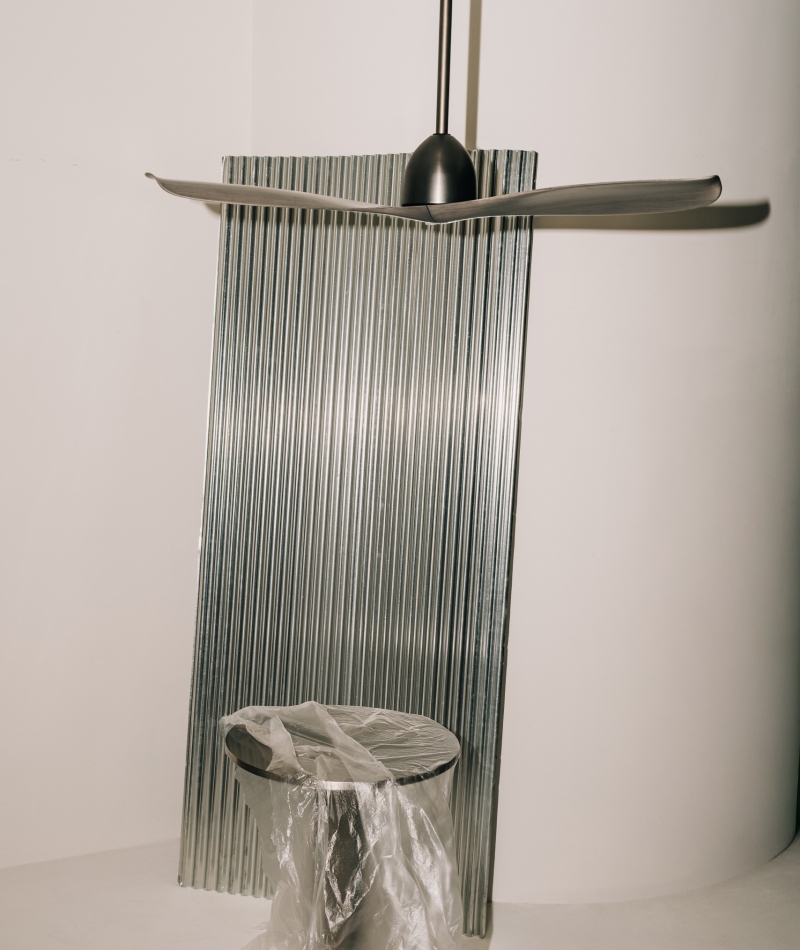

SOLIS delivers an expansive airflow experience through a remarkably compact design. Optimized blade geometry and airflow distribution create smoother circulation, transforming powerful airflow into a softer, more comfortable breeze.
Compact Modern Housing
Optimized Blade Profile
Comfort in Motion

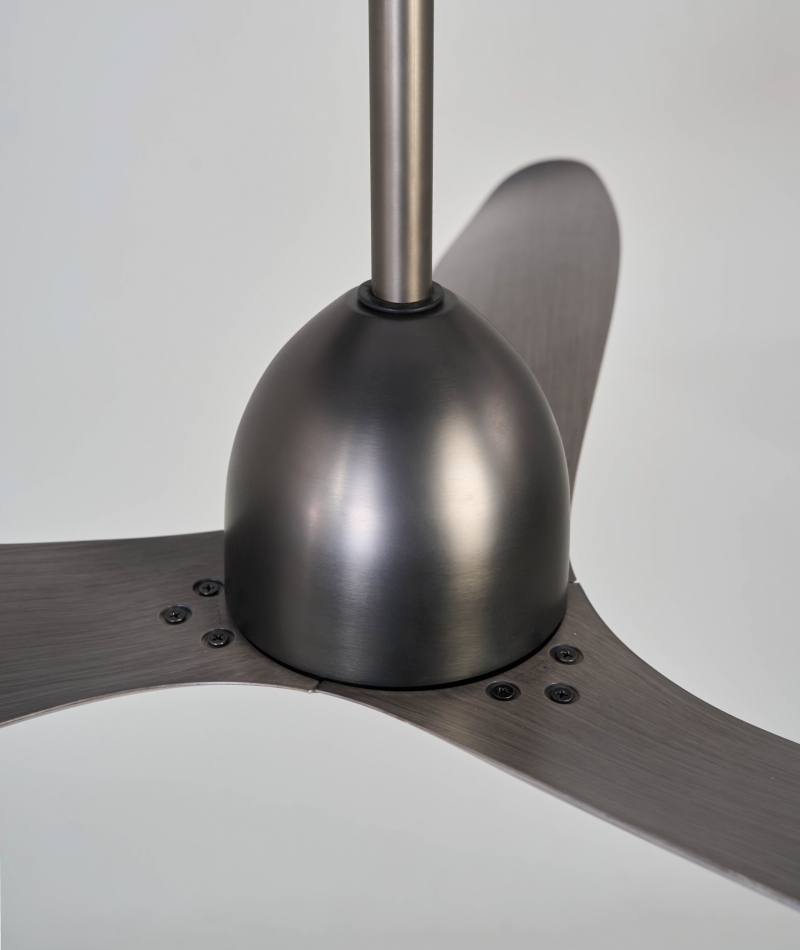

The gunmetal finish is achieved through a multi-layer coating and plating process, creating a deep, understated finish.

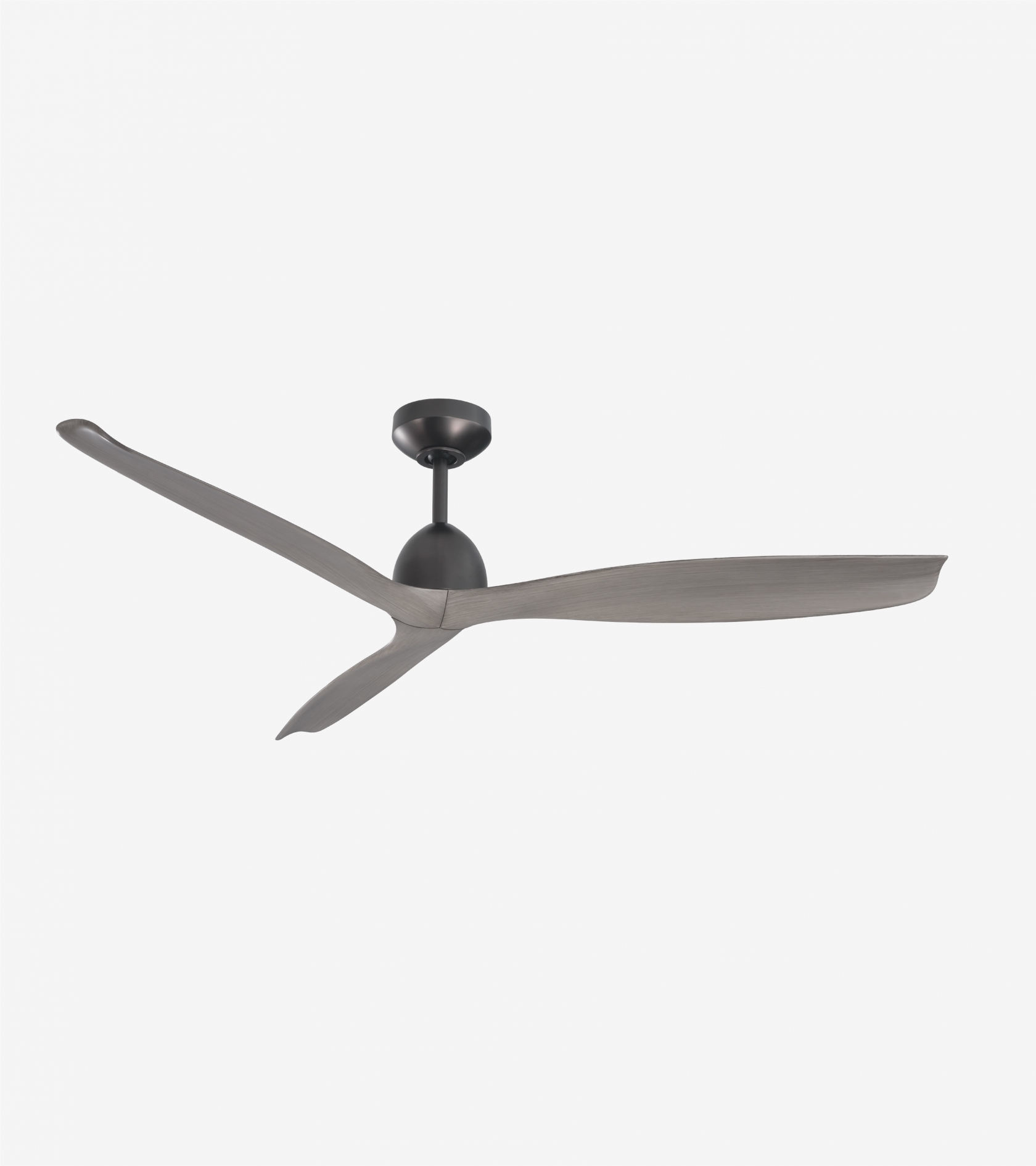

The gunmetal motor housing finish, paired with weathered grey blades, creates subtle depth and tonal contrast, giving SOLIS a refined architectural presence.

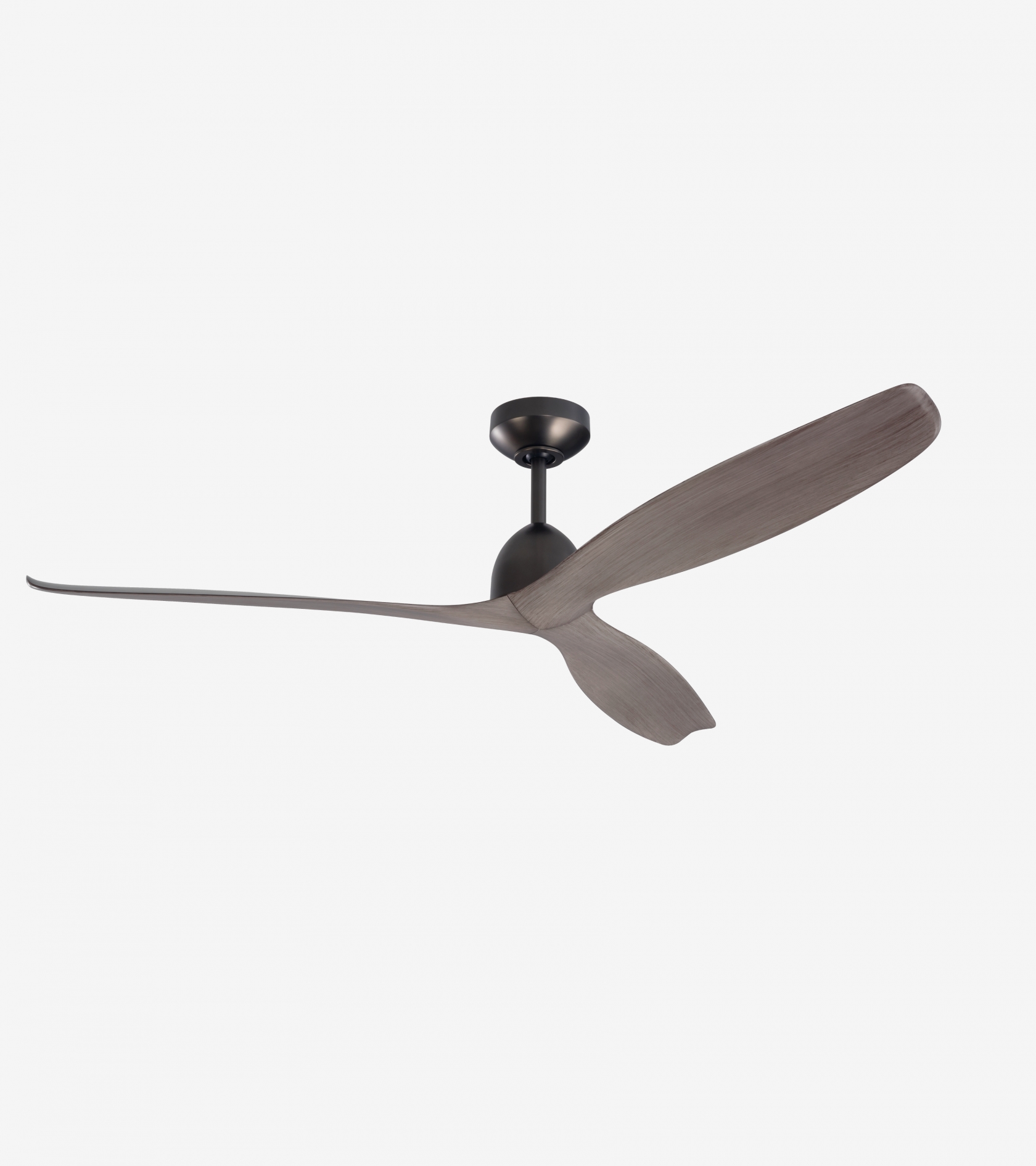

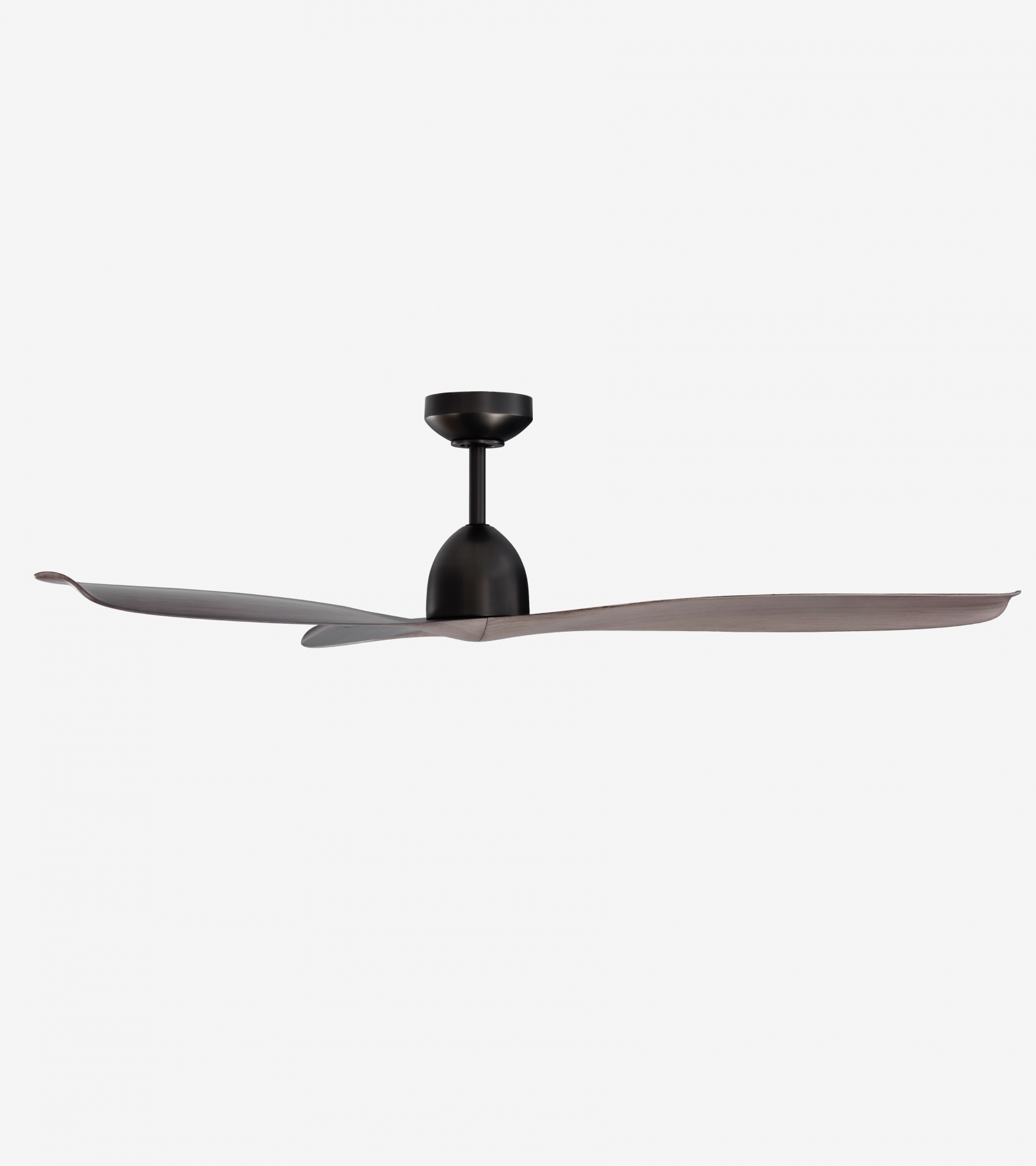

Product Details

產品規格

SOLIS 52
52HSE-D
產品規格
Materials 材質
Housing Finish｜Gunmetal Plating
Blade Finishes｜Hand-brushed Light Weather Grey
Blade Material｜UV Coated ABS

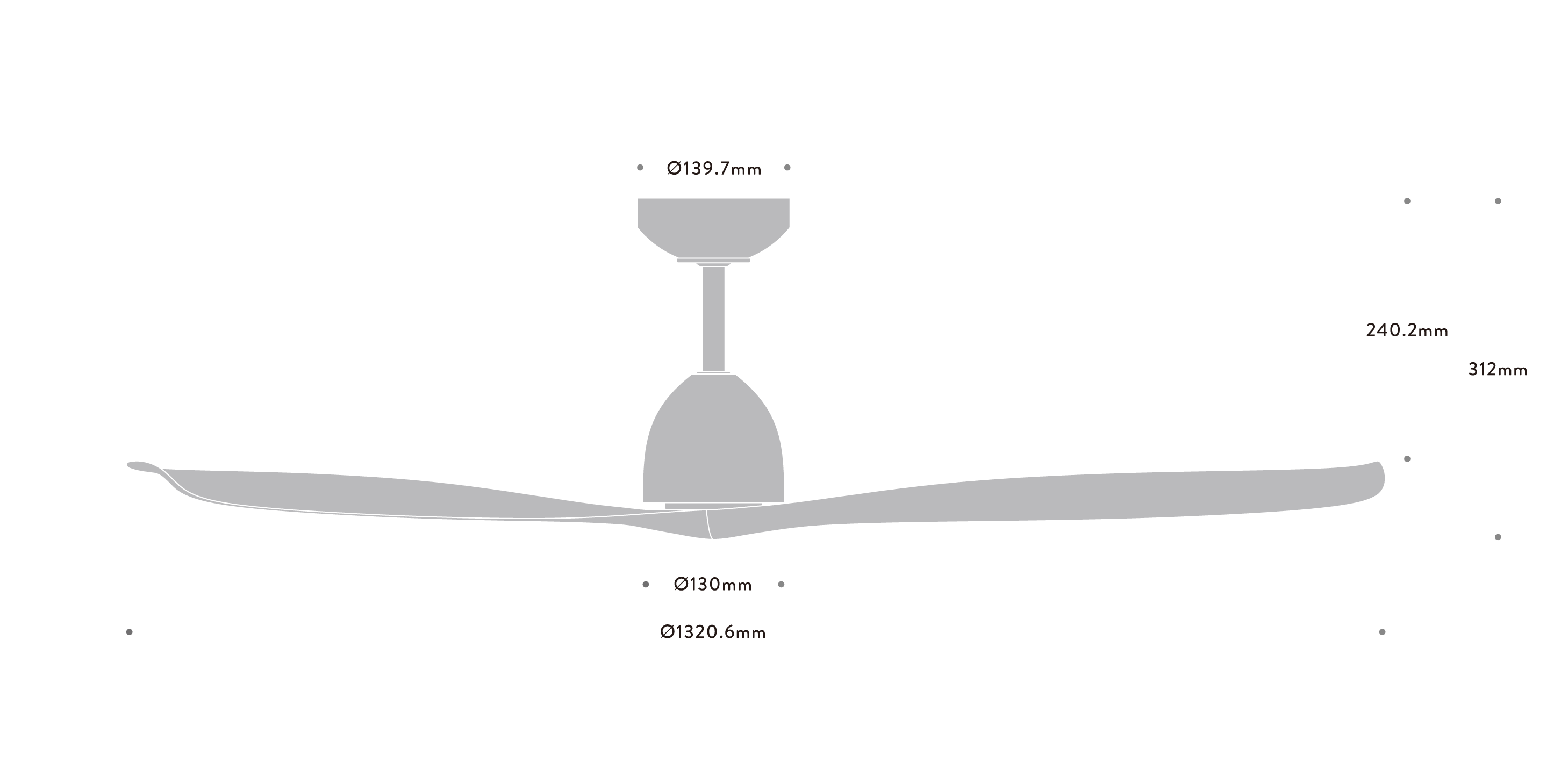

Dimensions 商品尺寸
Height | 315.3MM
Ceiling to Blade Length | 246MM
Diameter | 52'' (1320.8MM)
Weight | 4.38KG
Recommended Ceiling Height | 2.52M
Specifications 燈具及遙控規格
6 fan speed controls | Stimulate natural breeze | Compatible with KUBRICK SmartControl® App
Performance 風量與功率
DC Motor | DC108-30

Speed 1: 3130CFM | 5.0W
Speed 2: 4087CFM | 9.9W
Speed 3: 4905CFM | 15.1W
Speed 4: 5232CFM | 20.2W
Speed 5: 5722CFM | 25.1W
Speed 6: 6182CFM | 32.5W
Accessories 產品配件
Remote ControlKUBRICK SmartControl
