52HSEF

SOLIS 52

ABS BLADE
SOLIS 52 吋吸頂式風扇採用全新小尺寸馬達，大幅縮減馬達機身與天花尺寸，重新定義吊扇與空間的比例關係。更大的葉片延伸與更精簡的機身設計，減少吊扇對空間的視覺負擔，同時維持高效的氣流覆蓋。讓 52 吋吊扇在提供充足送風的同時，依然保有俐落、輕巧的外觀，帶來均勻、穩定且舒適的氣流循環。
click for more details
TWD 17,000
Matte WhiteMatte White
Matte White｜OakMatte White｜Oak
Gun Metal｜Light Weather GreyGun Metal｜Light Weather Grey
VISIT OUR RESELLER LEARN MORE
INSPIRE

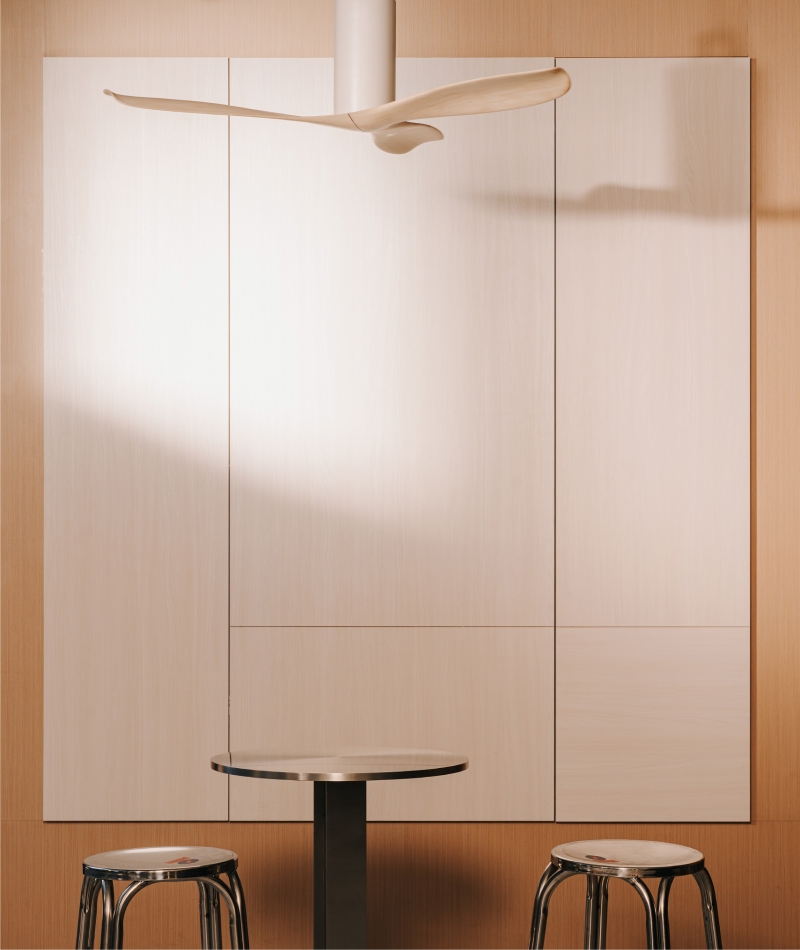

Designed for Airflow

Every curve of SOLIS is engineered for airflow performance. Optimized blade geometry reduces resistance and turbulence, creating a smoother, more even breeze and stable air circulation throughout the space.
Designed for Airflow
DETAIL DESIGN

Compact Ceiling Profile

SOLIS features a minimized flush-mounted core that reduces visual weight and allows the blades to extend more fully. Sitting closer to the ceiling, it maintains a clean, open presence in spaces with limited ceiling height.
DETAIL DESIGN

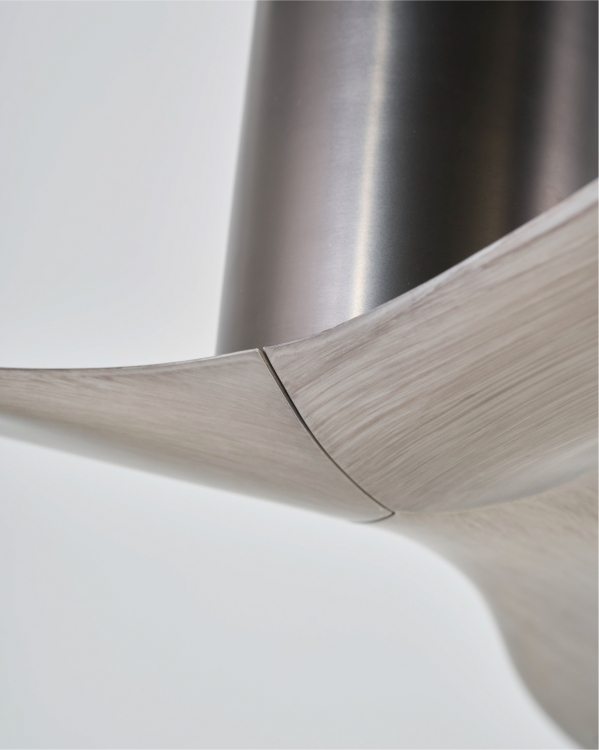

Optimized Blade Profile

Inspired by nature’s streamlined forms, the SOLIS blade uses a slender, subtly twisted profile to guide airflow more efficiently. An upturned blade tip reduces drag and turbulence, creating a smoother, more even, and comfortable breeze.
DETAIL DESIGN

Comfort in Motion

SOLIS delivers an expansive airflow experience through a remarkably compact design. Optimized blade geometry and airflow distribution create smoother circulation, transforming powerful airflow into a softer, more comfortable breeze.
Compact Ceiling Profile
Optimized Blade Profile
Comfort in Motion

Product Details

產品規格

SOLIS 52
52HSEF
產品規格
Materials 材質
Body | Powder-coated Matte White Metal
Blade | UV Powder-coated Oak Finish ABS
Dimensions 商品尺寸
Height | 256MM
Ceiling to Blade Length | 184.3MM
Diameter | 52'' (1320MM)
Weight | 5.2KG
Recommended Ceiling Height | 2.43M
Specifications 燈具及遙控規格
6 fan speed controls | Stimulate natural breeze | Compatible with KUBRICK SmartControl® App
Performance 風量與功率
DC Motor | DC108-30

Speed 1: 3130CFM | 5.0W
Speed 2: 4087CFM | 9.9W
Speed 3: 4905CFM | 15.1W
Speed 4: 5232CFM | 20.2W
Speed 5: 5722CFM | 25.1W
Speed 6: 6182CFM | 32.5W
Accessories 產品配件
Remote ControlKUBRICK SmartControl
Download 下載
2d drawing
specification
